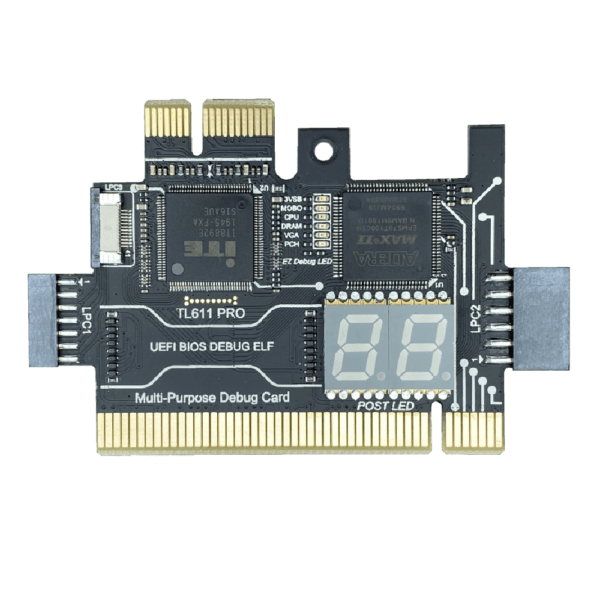

IMPROX® TL611 Pro Multifunction LPC-DEBUG Post PCI Motherboard Diagnostic Tester Card

IMPROX TL611 Pro Motherboard Diagnostic Debug Card. This advanced diagnostic tool builds on the design of the TL460S PLUS series, combining Altera’s MAX high-speed chip and Taiwan ITE’s PCIe bridge chip with an intelligent neural recognition system. Ideal for troubleshooting laptop and PC motherboards, the TL611 Pro supports PCI, PCI-E, Mini PCI-E, and LPC slots, ensuring compatibility with most major brands like Asus, Gigabyte, and MSI. The TL611 Pro’s multi-LED indicator system provides clear, precise diagnostics. The LEDs display real-time feedback on essential components: the standby power, motherboard clock, CPU, memory, graphics card, and PCH south bridge module. Designed for reliability and ease of use, this diagnostic tool supports up to 31 new motherboard definitions, making it a powerful addition to any tech toolkit. Key Features: Universal Compatibility: Supports PCI, PCI-E, Mini PCI-E, and LPC slots, compatible with motherboards from brands like Asus, Gigabyte, and MSI. Advanced Diagnostics: Neural recognition and high-speed chips for accurate identification of motherboard issues. Multi-LED Indicators: Display status of power, CPU, memory, graphics card, and motherboard modules, with dedicated lights for each component. Simple Operation: Easy to use with a clear LED interface for quick troubleshooting and power checks.

• Universal Motherboard Compatibility: Supports PCI, PCI-E, Mini PCI-E, and LPC slots, making it a versatile motherboard diagnostic tool compatible with popular brands such as Asus, Gigabyte, and MSI. Ideal for both laptops and PCs.
• Broad Brand Support for Diagnostics: Works with major motherboard brands, including Asus, MSI, Gigabyte, and more. Ensures wide-ranging compatibility for troubleshooting diverse motherboard models across gaming PCs, workstations, and desktop computers.

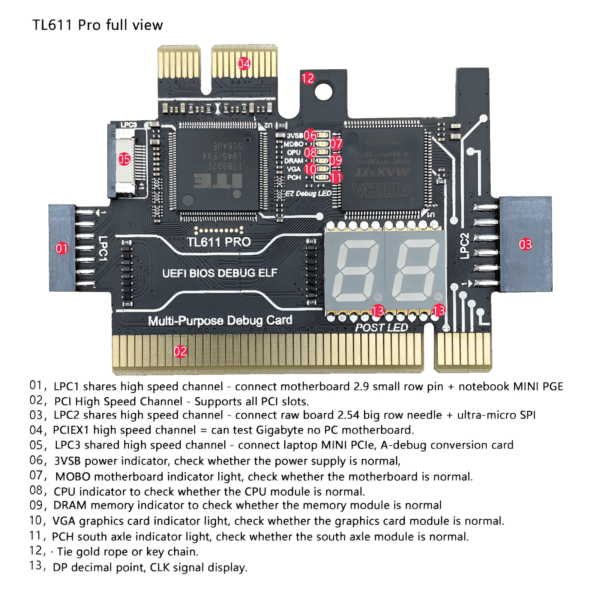

• Multi-LED Diagnostic Indicators: Features a multi-LED indicator system to display real-time status of critical components—power, CPU, memory, graphics card, motherboard clock, and hard drive. Simplifies diagnostics for both beginners and advanced users.
• User-Friendly and Simple Design: Easy to use and compact, this motherboard diagnostic card is perfect for quick, reliable diagnostics, whether you’re a professional technician or a tech enthusiast. Streamlines hardware troubleshooting with clear LED readouts.
• Comprehensive System Diagnostics: Accurately detects and displays the status of core components, helping you identify issues with power supply, CPU, RAM, GPU, and HDD for faster repair and maintenance.
  NOTE* : Since every motherboard brand has a wide variety of models and will keep adding new models, it is impossible to completely rule out the rare possibility of an incompatible motherboard model.
